One of the simpler and sturdier methods of mounting magnified optics to an AR15 is with a one-piece mount.

Here's the Big List of AR15 one-piece mounts.  I'm always interested in reviews and experiences, good and bad, and in any mounts I may have missed or corrections to the info below.  You can email me at maxiweb1@maxicon.com

Notes:


Table of Features     ADM    Armalite    B-Square     Bobro     Burris     CAA    DNZ     GG&G    JP Rifles    KAC    LaRue     Leatherwood    Mamba    Model 1 Sales    Nightforce    Promag    RRA     Talbot    USO    Wilson     Extended Rail and Rings     Rings Only     Credits


One-Piece Mounts - Table of Features
(Click the link to go to the description with pictures)

Mount Price Centerline
Height
Weight Notes
ADM Recon
1", 30mm
QR lever
$180 1.4" (1")
1.47" (30mm)
8.4 oz Standard - 2" forward offset
ADM Recon X
1", 30mm
QR lever
$190 1.4" (1")
1.47" (30mm)
  Extended - 3" forward offset
ADM Recon S
1", 30mm
QR lever
$160 1.4" (1")
1.47" (30mm)
  Straight - no forward offset
ADM Scout X
1", 30mm
QR lever
$180 1.4" (1")
1.47" (30mm)
7.1 oz Extended, lighter weight
Armalite
1", 30mm
Semi QR thumbscrew
$89 1.25"
(1" and 30mm)
7.4 oz (1")
6.8 oz (30mm)
Lower than iron sight height
B-Square
1"
Semi QR thumbscrew
$70 1.7" 6.3 oz Covers entire rail - no room
for a BUIS
Bobro
1", 30mm, 34mm, 35mm
QR lever
$215 1.44" (1")
1.52" (30mm)
6.8 oz No tools or adjustments required
for the lever.
Burris P.E.P.R
1", 30mm
Wrench mount
$70 1.5" (1")
1.59" (30mm)
8.3 oz (1")
8.7 oz (30mm)
Best bet in the under
$100 mount market
CAA  DVSR
30mm w/ 1" adapters
Wrench mount
$25 1.58" (30mm)
1.67" (1")
4.9 oz (30mm)
5.4 oz (1")
Best bet in the under $30
mount market for 30mm.
1" ring adapters are marginal.
DNZ Dednutz
1", 30mm
Semi QR thumbscrew
$100-
$120
1.375"
(1" and 30mm)
  No forward offset
GG&G Accucam
1", 30mm, 34mm
QR lever
$200 1.4" (1") 6 oz Accucam is QD mount is speced
for 0.5 MOA repeatability
GG&G FLT
1", 30mm
QR lever or wrench mount
$147-
$190
1.46" (30mm) 5.5 oz Comes in both Accucam QD
and wrench mount versions
JP Rifles
1", 30mm
Wrench mount
$150 1.5"   Sturdy and solid non QR mount.

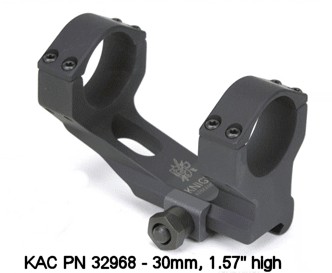

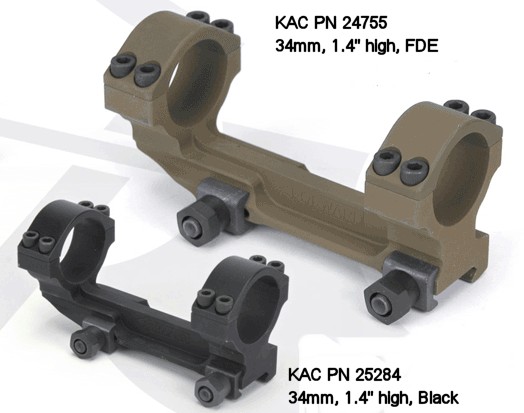

KAC (various)
30mm, 34mm
Wrench mount
$200-
$270
1.4"
1.57"
  Not often seen on
civilian rifles.

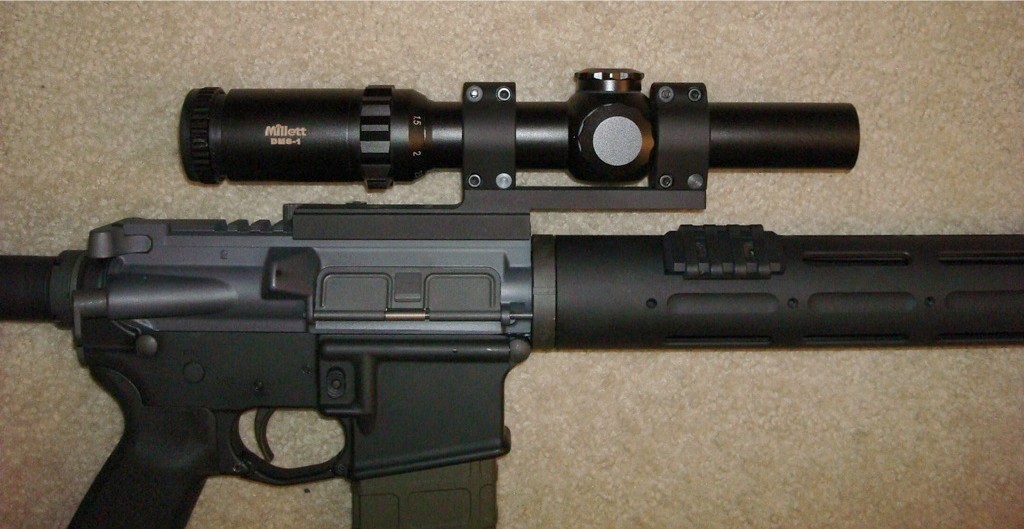

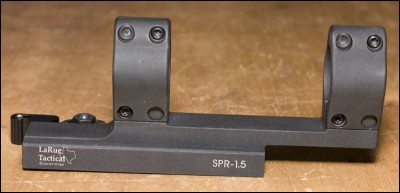

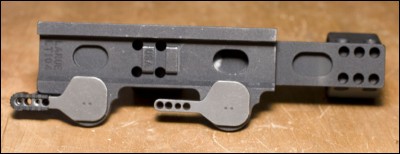

LaRue LT-104, LT-139
1", 30mm, 34mm
QR lever
$195-
$210
1.41" (1")
1.50" (30mm)
LT104 - 7.1 oz The most popular QR mounts.
LT-104 is SPR standard offset
LT-139 is SPR-E extended offset
LaRue LT-135
1", 30mm, 34mm
QR lever
$215 1.93 (30mm)
1.84" (1")
  Designed to mount a S&B Short
Dot above a PEQ-2.
LaRue LT-158
10 MOA elevation
1", 30mm, 34mm
QR lever
$195 1.44 (30mm)
1.35" (1")
  Adds 10 MOA elevation for
longer range shooting.

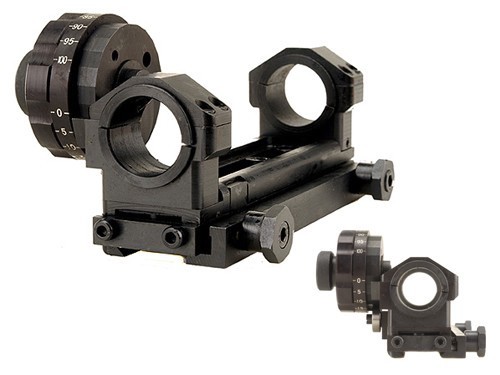

Leatherwood Hilux
1", 30mm
Wrench mount
$360   Over 2.5 lbs Offers up to 120 MOA of vertical
adjustment with the mount.  30mm
with 1" ring adapters.
Mamba Long Range
1", 30mm
Wrench mount
$150-
$200
0.875" to 1.30"   Adds 25 or 40 MOA offset.
No forward offset.

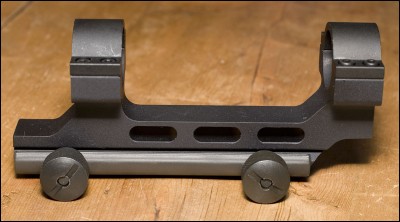

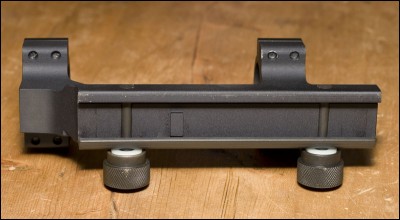

Model 1 Sales
1", 30mm
Semi QR thumbscrews
$79 1.75" (1")   One of the higher mounts.
Limited forward offset

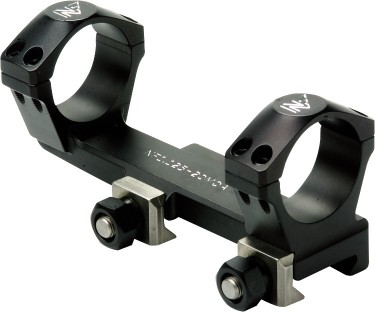

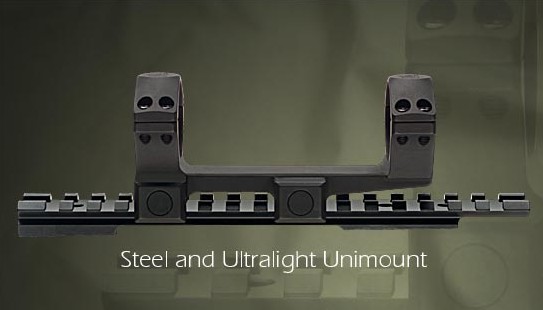

Nightforce Unimount
30mm
Wrench mount
$260 1.4"
1.125"
  Adds 20 MOA offset.

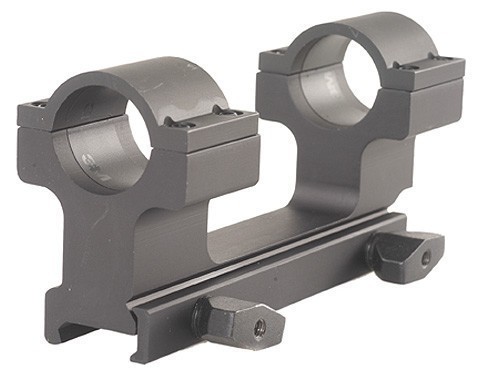

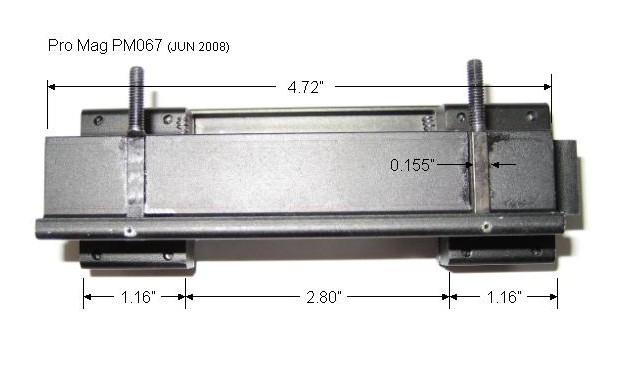

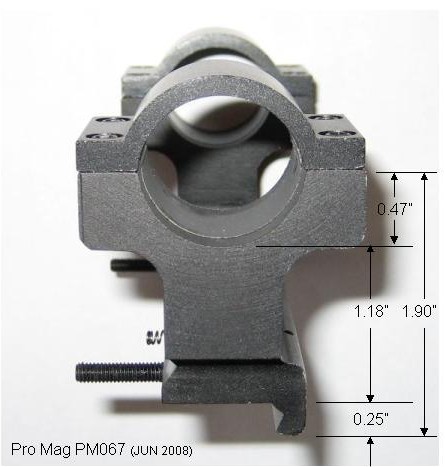

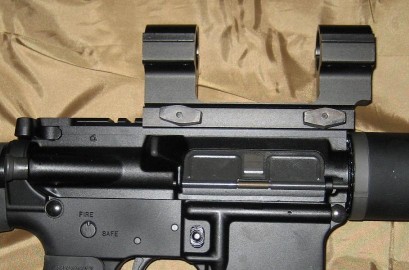

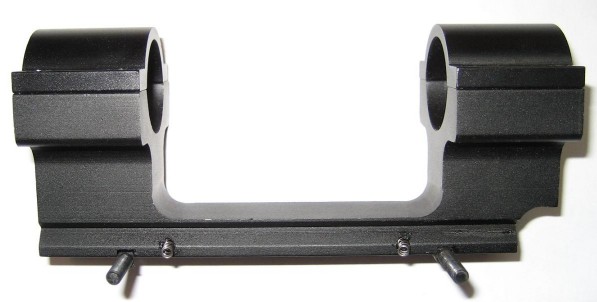

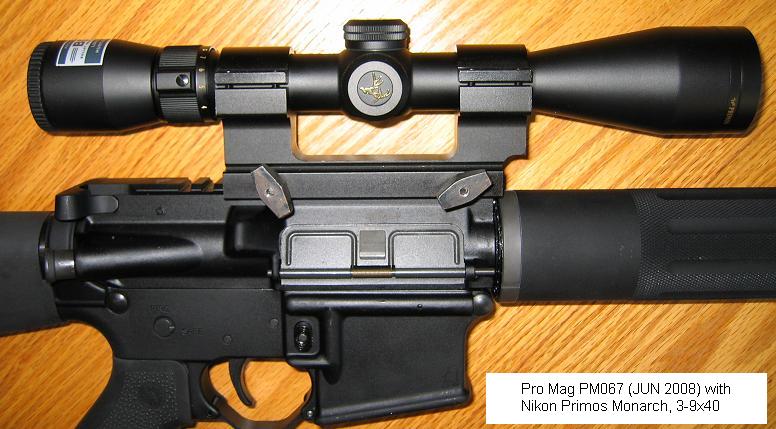

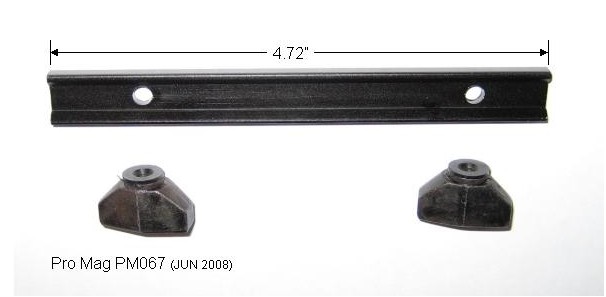

Promag
1", 30mm
Semi QR thumbscrew
$55-
$78
1.68" (1")   One of the higher mounts.
Limited forward offset.

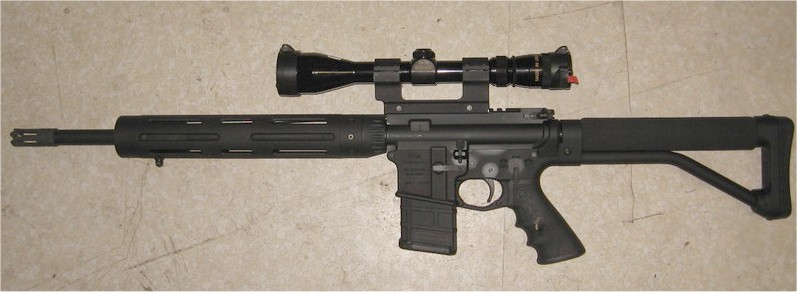

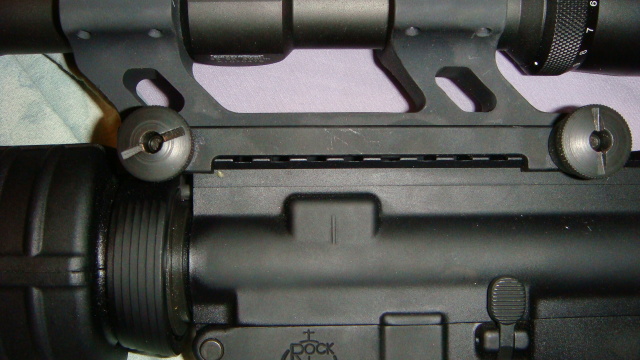

RRA
1", 30mm
Semi QR thumbscrew
$48 1.67" (1") 10.7 oz One of the higher mounts.
Updated new version improves
on older version.

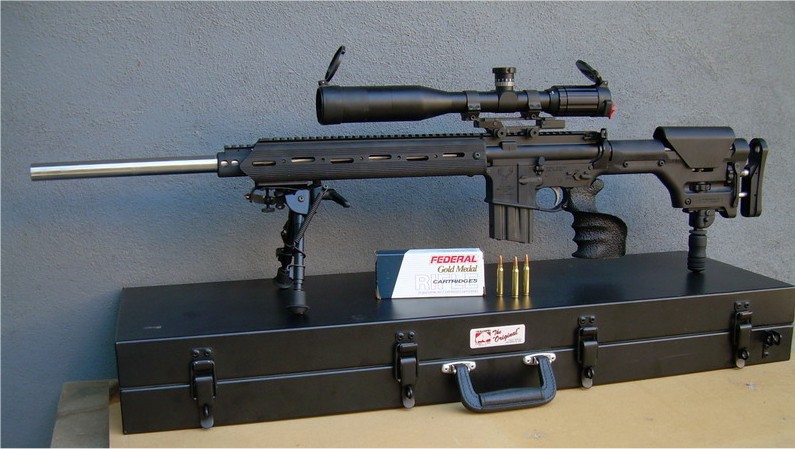

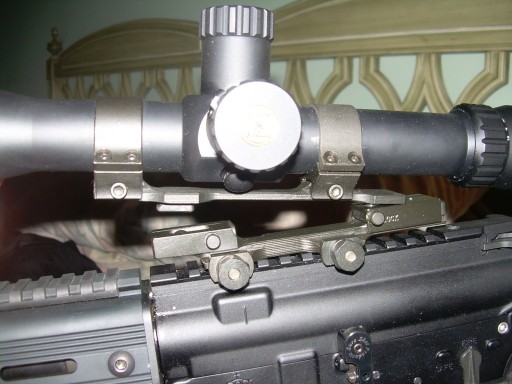

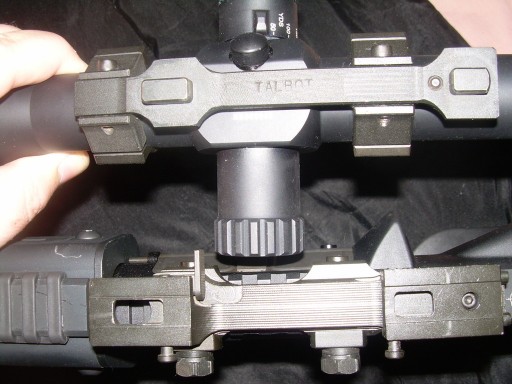

Talbot
1", 30mm, 34mm,
35mm, 40mm
$437-
$500
    Available in 0, 10, 20 MOA

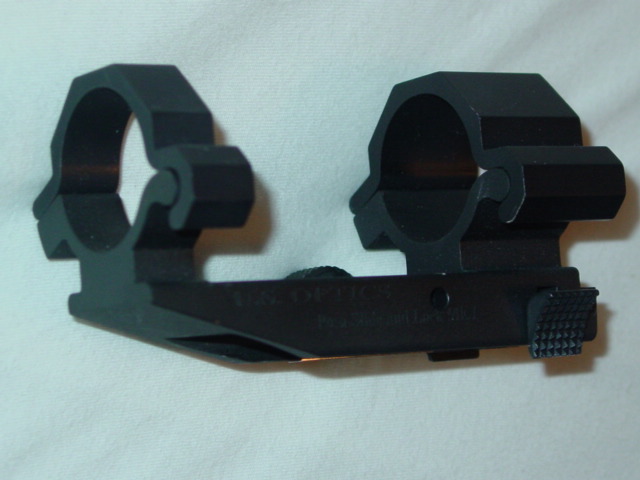

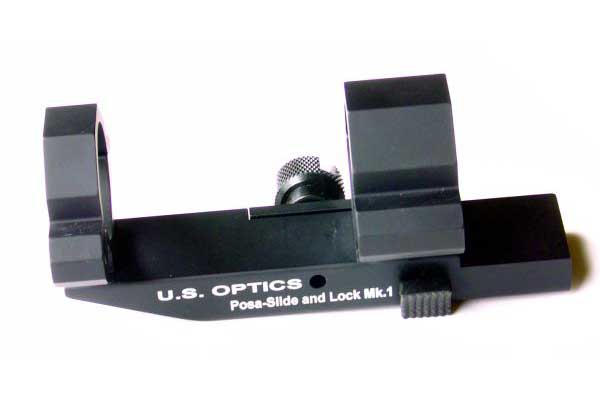

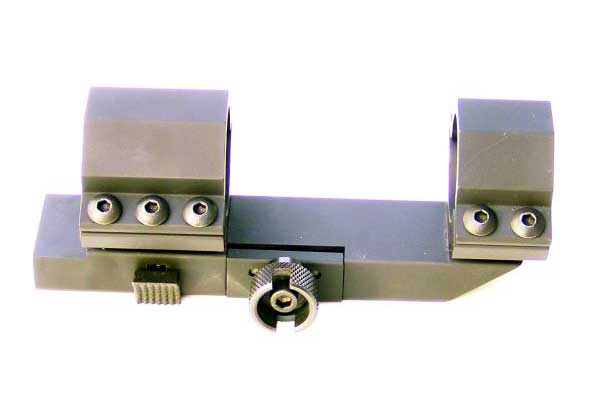

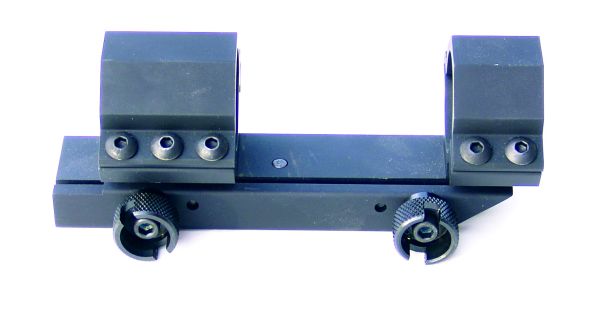

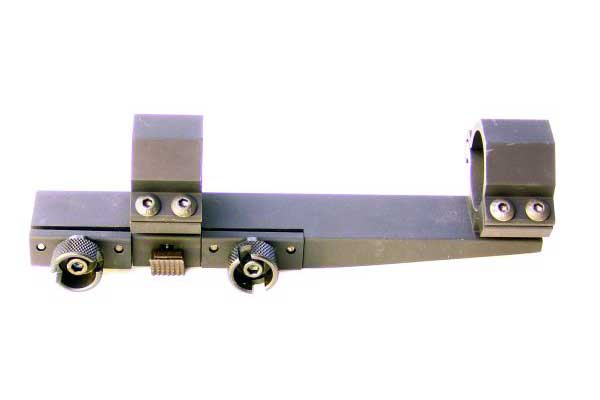

USO Posa-Slide and Lock
30mm
Semi QR thumbscrew
$170-
$250
    QR mount/base combo

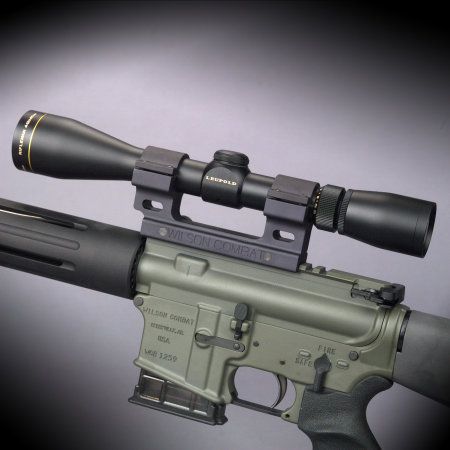

Wilson Combat
1", 30mm
Semi QR thumbscrew
$80 1.65"   One of the higher mounts.
Limited forward offset.

Table of Features     ADM    Armalite    B-Square     Bobro     Burris     CAA    DNZ     GG&G    JP Rifles    KAC    LaRue     Leatherwood    Mamba    Model 1 Sales    Nightforce    Promag    RRA     Talbot    USO    Wilson     Extended Rail and Rings     Rings Only     Credits

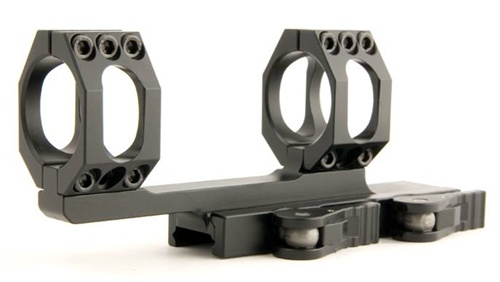

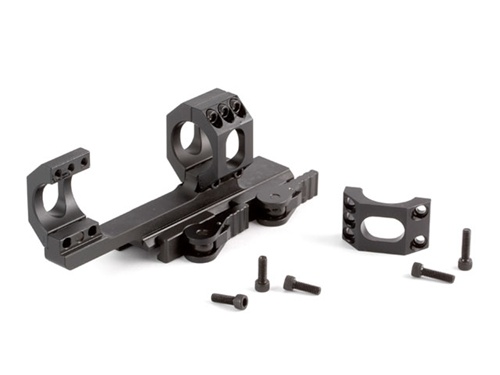

American Defense RECON Scope Mount


Recon mount with 1" rings.  http://www.bravocompanyusa.com/American-Defense-RECON-Scope-Mount-1-inch-rings-p/ad%20recon%201in.htm
Recon mount with 30mm rings.  $180 new - http://www.bravocompanyusa.com/American-Defense-RECON-Scope-Mount-30mm-rings-p/ad%20recon%2030.htm

Centerline height - 1.47" for 30mm, 1.40" on 1"
Weight - 8.4 oz (30 mm), 7.1 oz (Scout X)
Body - 6061 T6 aluminum, T3 milspec anodized finish
Ring Screws - 1/8" allen head, 6-32 x 1/2 threads
Clamp Attachment - Quick release adjustable tension levers
Recoil lug - 2 integral Picatinny lugs (one lug on the Scout X)

ADM Recon mounts have quick-release lever locks that adjust for wear or out of spec rails.

The Recon mounts are $180 new.  They extend the scope forward approximately 2 inches.

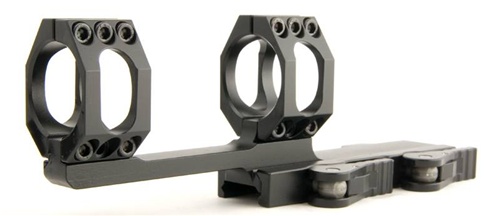

Recon X extended mount with 1" rings - http://www.bravocompanyusa.com/American-Defense-RECON-X-Extended-Scope-1-in-rings-p/ad%20recon%20x%201.htm
Recon X extended mount with 30mm rings - http://www.bravocompanyusa.com/American-Defense-RECON-X-Extended-Scope-30mm-rings-p/ad%20recon%20x%2030.htm

The Recon X mounts are $190 new.  They extend the scope forward approximately 3 inches.



Recon S straight mount with 1" rings - http://www.bravocompanyusa.com/American-Defense-RECON-S-Scope-Mount-1-inch-rings-p/ad%20recon%20s%201in.htm
Recon S straight mount with 30mm rings - http://www.bravocompanyusa.com/American-Defense-RECON-S-Scope-Mount-30mm-rings-p/ad%20recon%20s%2030.htm

The Recon S mounts are $160 new.  They mount the rings directly above the receiver.

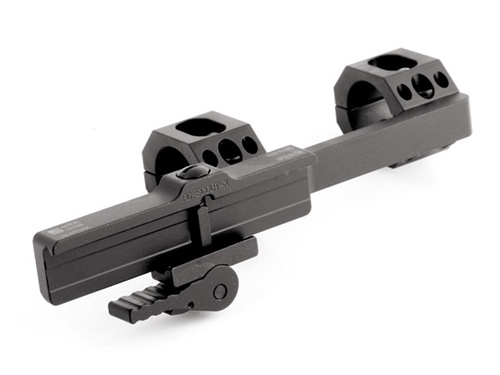

Scout X extended mount  with 1" rings or 30mm rings - http://www.bravocompanyusa.com/American-Defense-SCOUT-X-Extended-Scope-30mm-rings-p/ad%20scout%20x%2030.htm

The Scout X extended mounts are $180 new.  They extend the scope similar to the Recon X mount, but are lighter weight and have a single clamping lever, a shorter clamp, and a single recoil lug.

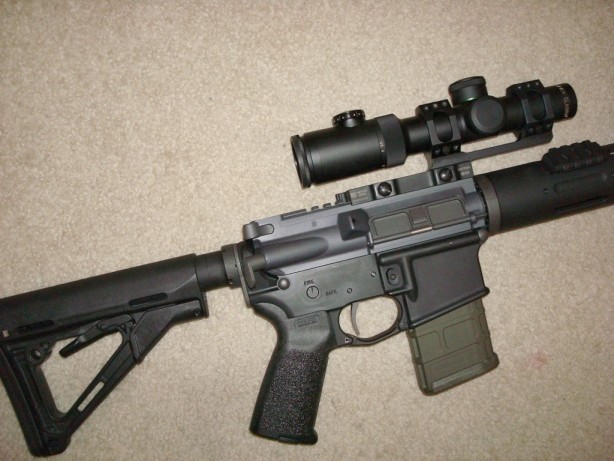

Here's a Weaver Classic Extreme 1-4x mounted in the Recon X extended mount.  There's lots of forward offset, even with the long illuminated eyepiece of the Weaver.




Table of Features     ADM    Armalite    B-Square     Bobro     Burris     CAA    DNZ     GG&G    JP Rifles    KAC    LaRue     Leatherwood    Mamba    Model 1 Sales    Nightforce    Promag    RRA     Talbot    USO    Wilson     Extended Rail and Rings     Rings Only     Credits

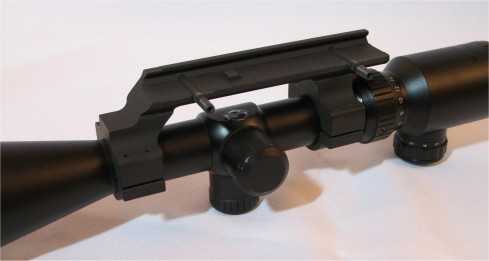

Armalite

1" mount - http://www.armalite.com/ItemForm.aspx?item=EX0027
30mm mount - http://www.armalite.com/ItemForm.aspx?item=EX0022

The Armalite is $89 new, $50-75 used (the new price was briefly reduced to $69, but has returned to the old price now).

Centerline height - 1.25" for 1" and 30mm
Weight - 211 grams, 7.4 oz (1"); 194 grams, 6.8 oz (30 mm)
Body - Aluminum
Ring Screws - 1/8" allen head, 6-32 x 1/2 threads
Clamp Attachment - 10-32 x 5/8 pressed studs, high-profile knurled thumbscrews with plastic washers
Recoil lug - Integral Picatinny lug

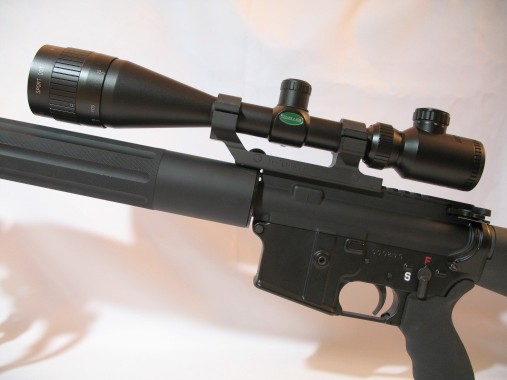

The Armalite is one of the lower of the one-piece mounts, and is one of the best made for under $100.  This makes it difficult to clear most rear BUIS', depending on the scope, but is better for those who want to be closer to the bore axis.  It has a single recoil lug.  There are 4 screws for each ring.

It's got good forward offset, though not enough for scopes with long eyepieces (like many illuminated scopes), like the Mueller in the picture below.  With low-profile handguards, it can be mounted with the recoil lug in the last slot, which leaves the front thumbscrew hanging out over the handguard.  This gives a little extra eye relief and is still very stable, though it still may not be far enough forward for some scopes.

If Armalite would make this mount available in a 1.5" centerline version, they'd have the sub-$100 mount market locked up.

The factory finish on my 30mm is purplish anodizing.  My 1" mount was RealTree camo, and I sprayed it black with barbeque paint, which looks better than the factory anodizing to me.

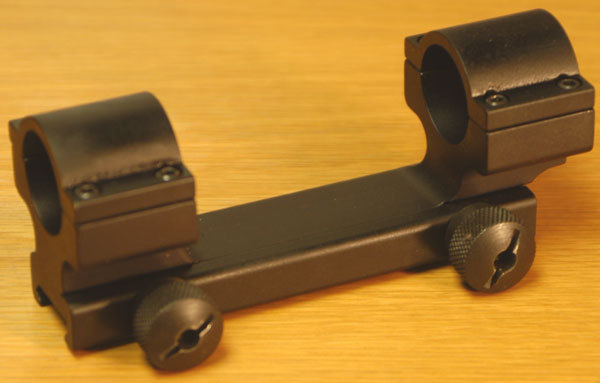

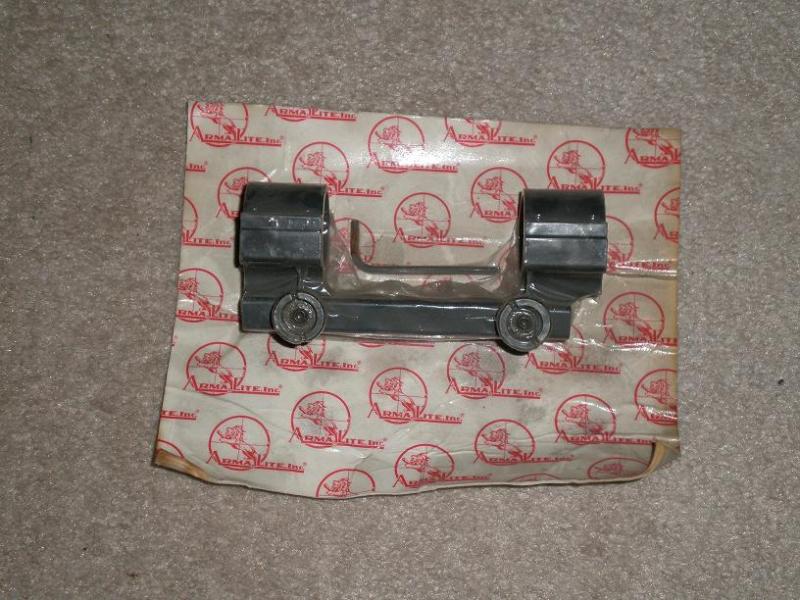

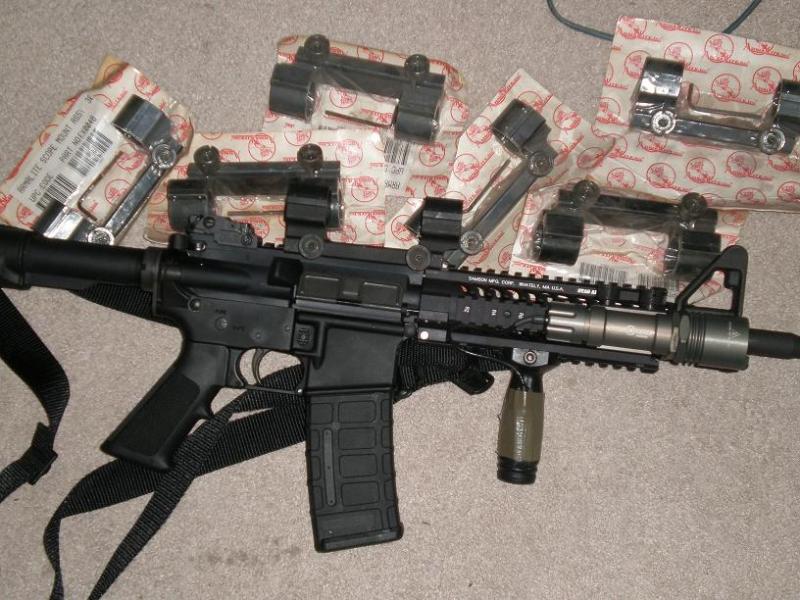

Armalite made an earlier version of this mount that was the design model for the Promag, the old style RRA, and the Wilson.  The Armalite PN was EX0048 for the 30mm.  I have no technical details on this mount - they don't show up very often, and are likely to be mistaken for the old style RRA.


Table of Features     ADM    Armalite    B-Square     Bobro     Burris     CAA    DNZ     GG&G    JP Rifles    KAC    LaRue     Leatherwood    Mamba    Model 1 Sales    Nightforce    Promag    RRA     Talbot    USO    Wilson     Extended Rail and Rings     Rings Only     Credits

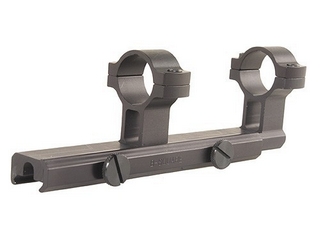

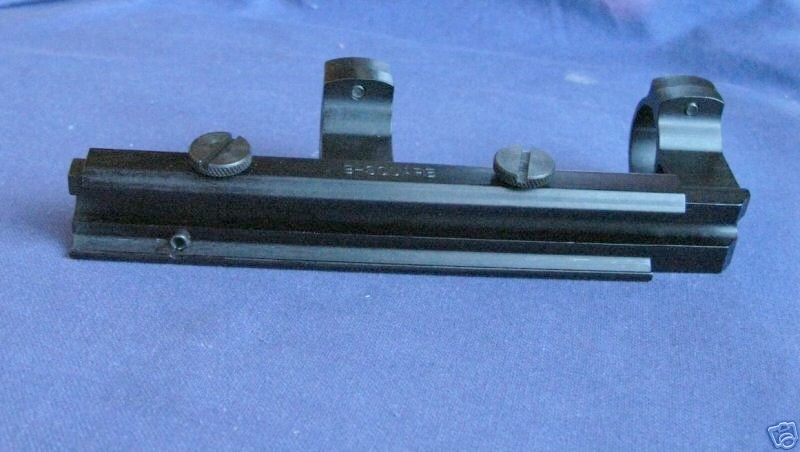

B-Square 15150 Flat Top Mount - 1"
http://secure.armorholdings.com/b-square/colt_military.html

$60-70 new, $20-40 used - frequently available on ebay, unlike most AR15 one-piece mounts

Centerline height - 1.7"
Weight - 178 grams, 6.3 oz
Body - Aluminum
Ring Screws - 1/8" allen head with 8-32 threads
Clamp Attachment - Knurled low-profile thumbscrews with coin slots and 8-32 x 3/8 threads
Recoil lug - Roll pin

This is a fascinating mount.  B-square isn't usually associated with high-precision name brand rifles, but a version of this mount shipped for a while on the high-end Colt Accurized Rifle, model CR6724, and you often find take-offs on the used market.  The Colt version of the mount has the Colt logo on one side, and commands a slight price premium.  Interestingly, it's often seen mounted backwards on the rifle, possibly because of the A2 stock, which didn't require the same amount of extended eye relief as shorter stocks.

It's got semi quick release thumbscrews with coin slots, and instead of a traditional recoil lug or cross-slot screw, it's got a roll pin that sticks down into the slot.  It also has see-through cutouts, in the tradition of many B-Square mounts and rings.  The B-Square can provide a good bit of forward eye relief, depending on the handguard, and has a single screw per side for the rings.  The rings are 3/4" wide.

If it's installed with the cutout above the delta ring, it covers all the slots to the rear, so there's no room for a BUIS.  On an upper with M4 handguards, it can be installed further forward, with the cutout over the handguards.  This gives more eye relief, but barely uncovers one slot, so there's still no room for a BUIS.

With a varmint-style FF handguard, it can be mounted as far forward as the roll pin position will allow, though it starts to get unstable once the front thumbscrew is ahead of the rail.  With the front thumbscrew at the front edge of the rail, there's plenty of room for a BUIS, and lots of forward eye relief as well.

The lack of BUIS space could be fixed by cutting off the mount behind the roll pin or by extending the front cutout further back to allow more forward mounting without hitting the handguard.

On my mount, there are machining marks on the base where the rings are squared up to the body and on the flat surfaces facing front and back.  The base has a glossy black finish, while the ring tops have a duller matte finish.


Table of Features     ADM    Armalite    B-Square     Bobro     Burris     CAA    DNZ     GG&G    JP Rifles    KAC    LaRue     Leatherwood    Mamba    Model 1 Sales    Nightforce    Promag    RRA     Talbot    USO    Wilson     Extended Rail and Rings     Rings Only     Credits



Bobro Engineering

http://www.bobroengineering.com/ (there are no manufacturer's links to this mount when this section was added)
Mounts are available from www.rainierarms.com, but the scope mount isn't on their website either - you have to call to check on availability.

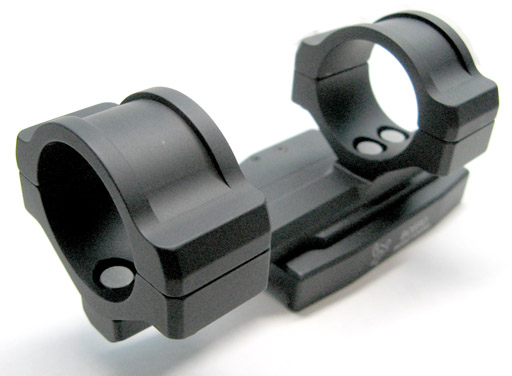

Bobro Scope Mount (1", 30mm, 34mm, 35mm)
$215 new
Centerline height - 1.44" (1"), 1.52" (30mm)
Weight : 192 gm, 6.8 oz
Body - aluminum
Clamp system - lever

Bobro started out with Aimpoint mounts, and is now making a one-piece scope mount.  There's not much info on it out there, as it's a new design, but it looks like a strong contender for the lever clamp market.  Here are some threads with lots of pics and discussion:
http://www.weaponevolution.com/forum/showthread.php?t=329
http://www.weaponevolution.com/forum/showthread.php?t=1125

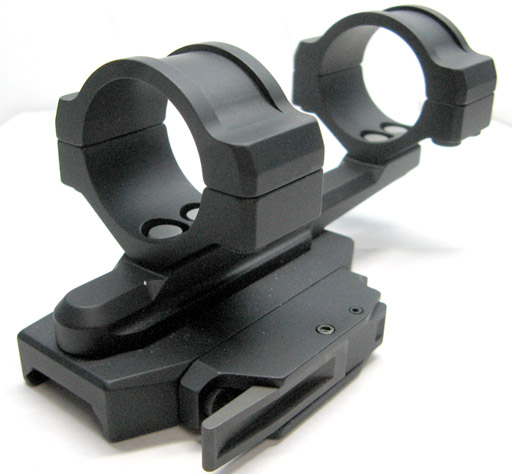

The Bobro BLAC lever clamping system doesn't require tools or adjustment, even on out of spec rails, and won't mar the rail due to misadjustment when mounting.  It has a repeatable forward indexing system for the rail slot, and a spring loaded locking tab to prevent the lever from being accidentally released but can still be released one-handed.

The design includes a modular base that a variety of mounts can be attached to, and the rings are modular, so a mount can be changed between 1", 30mm, 34mm, and 35mm.  The top ring halves have threaded studs that are held on by nuts installed in the bottom half, so there's no steel to aluminum threading to strip.

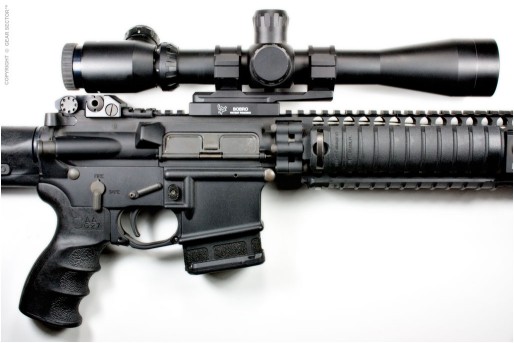

There are 2 models - the 200 and 201.  The 201 has the rings close together, the 200 has the rings further apart.

The standard Bobro mount has a left-hand lever, but this 201 was from a batch with a right hand lever requested by the military.  The base may be reversible, according to comments posted online.

This is the base of the Bobro Comp M4 mount, which should be the same base as the other mounts.


Table of Features     ADM    Armalite    B-Square     Bobro     Burris     CAA    DNZ     GG&G    JP Rifles    KAC    LaRue     Leatherwood    Mamba    Model 1 Sales    Nightforce    Promag    RRA     Talbot    USO    Wilson     Extended Rail and Rings     Rings Only     Credits

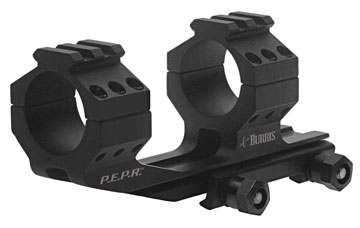

Burris AR-P.E.P.R
http://www.burrisoptics.com/arpepr.html - 30mm PN - 410341, 1" PN - 410343

http://www.swfa.com/c-2735-burris-ar-tactical-mounts.aspx

 $70 new

Centerline height - 1.59" (30mm); 1.5" (1")
Weight - 8.7 oz (30mm); 8.3 oz (1")
Body - Aluminum
Clamp screws - hex nuts
Spacing between inner edges of rings - 2.15"
Spacing between outer edges of rings - 4.17"
Ring width - 1"
Height from rail to Picatinny ring top - 2.67" (30mm), 2.44" (1")

A challenger appears!  The Burris AR-PEPR (Proper Eye Position Ready) mount is Burris' entry into the AR15 one-piece mount market, and they've been listening to what customers want and need in a mid-price mount.  It provides a good bit of forward offset and height, leaves plenty of room for a BUIS on the rail, and feature Burris' Picatinny rail ring tops for the ability to mount additional optics, like a Fastfire mini red dot or laser.  These are Burris' standard optional ring tops, and they can be exchanged with the ring tops from their XTR series of rings if a traditional, lighter, more snagproof ring top was wanted.

The wide rings provide lots of area to hold the scope, but will limit the amount of front to rear adjustment, particularly for shorter scopes.

They also publish a nearly complete list of specs (height, weight, ring spacing, etc) on the web page, missing only the length of the rail portion, which is something all mount manufacturers should do.  Like with their rings, Burris specs ring height to the base of the ring, and centerline height is found by adding 0.59" (30mm) or 0.50" (1") to the spec height.

The Burris PEPR appears to be the best under $100 AR one-piece mount currently available - it fixes the shortcomings of other mounts in this range, and has few drawbacks.  For those needing an extended mount for long eyepiece scopes, the PEPR doesn't provide as much as the LaRue SPR-E, ADM Recon X, or ADM Scout X, so those needing extra forward offset will still need to pony up more cash.


PEPR with Millett DMS-1 mounted




Table of Features     ADM    Armalite    B-Square     Bobro     Burris     CAA    DNZ     GG&G    JP Rifles    KAC    LaRue     Leatherwood    Mamba    Model 1 Sales    Nightforce    Promag    RRA     Talbot    USO    Wilson     Extended Rail and Rings     Rings Only     Credits

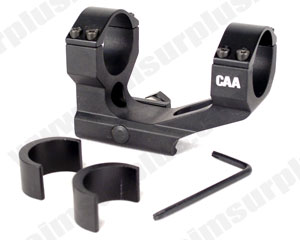

Command Arms DVSR Dual Scope Ring Rail Mount - 30mm with 1" inserts
http://www.commandarms.com/product.asp?pID=175&cID=22
http://www.midwayusa.com/eproductpage.exe/showproduct?saleitemid=578080&t=11082005
http://www.bigrivertactical.com/catalog/item/2510573/5528077.htm
http://www.calssportingarmory.com/ProductDetails.asp?ProductCode=CAADVSR

The DVSR is $23 new.

Centerline height - 1.58" (30mm); 1.67" (with included 1" inserts)
Weight - 138 grams, 4.9 oz (30mm); 153 grams, 5.4 oz (with 1" inserts)
Body - Aluminum
Ring Screws - Torx T-15 heads, M4x10 metric threads
Clamp Screws - 1/4" pressed stud with 1/4-32 UNEF threads (I think), 1/2" nut
Recoil lug - Cross-slot screw shaft with 90 degree wedge cut out

See a full review of the DVSR here, with lots of pictures, including the Millett DMS-1:
CAA DVSR One-Piece Mount Review.

The DVSR is a surprisingly good mount for the price when used with 30mm scopes.  It holds up well, provides decent forward offset and plenty of height to clear a BUIS, and has been reliable for most people.  It's a fairly close copy of the seldom seen KAC 32968.  With the included 1" half-circle adapters, it doesn't clamp most 1" scopes well enough to keep them secure under recoil, but with full circle 1" adapters, it works much better.

While the forward offset is good, it's often not enough with long eyepiece illuminated scopes, like the popular and inexpensive DMS-1.

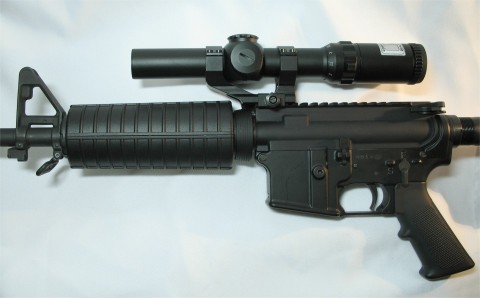

Millett DMS-1 in a DVSR mount, slightly overhanging the front of the receiver.  This is the most forward extension available.


Table of Features     ADM    Armalite    B-Square     Bobro     Burris     CAA    DNZ     GG&G    JP Rifles    KAC    LaRue     Leatherwood    Mamba    Model 1 Sales    Nightforce    Promag    RRA     Talbot    USO    Wilson     Extended Rail and Rings     Rings Only     Credits



DNZ Dednutz Freedom Reaper Mount

http://www.dnzproducts.com/index.php?main_page=index&cPath=60

DNZ 111PT 1" Mount - http://www.midwayusa.com/eproductpage.exe/showproduct?saleitemid=171186
http://www.opticsplanet.net/dnz-dednutz-game-reaper-picantinny-1in-black-mount-111pt.html
DNZ 311PT 30mm Mount - http://www.midwayusa.com/eproductpage.exe/showproduct?saleitemid=131724
http://www.opticsplanet.net/dnz-dednutz-game-reaper-picantinny-30-mm-black-mount-311pt.html
Note that the opticsplanet pics are of a different mount - the 50700 Remington 7400 mount, not the Picatinny mount at the time of this update.

 The DNZ 1" mount is $95-$110 new.  The 30mm version is $115-$130.  The mounts are made in the USA.  The body of the mount is machined out more than many to reduce weight while maintaining rigidity.

Centerline height - 1.375" (1" and 30mm)
Body - Machined aluminum
Ring screws - Socket head screws, 4 screws per ring
Clamp screws - thumb screws with coin slots

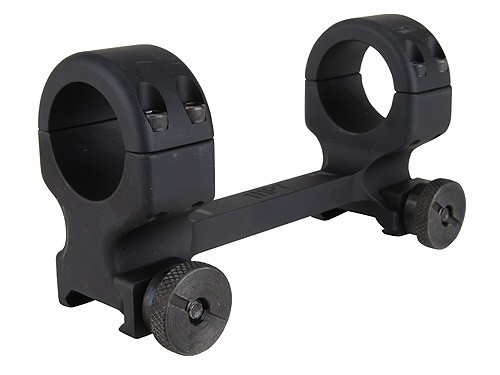

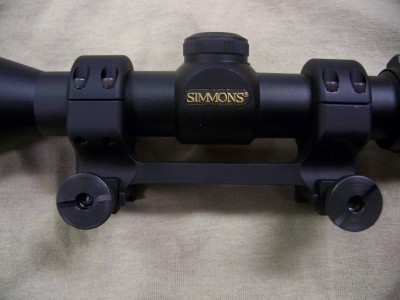

DNZ 1" Mount

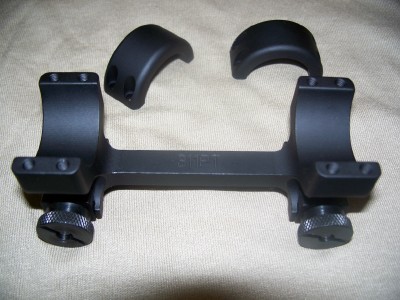

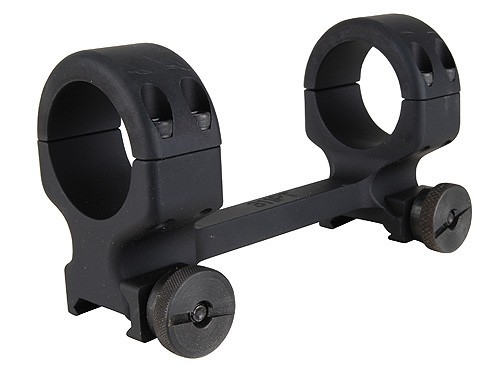

DNZ 30mm Mount




Table of Features     ADM    Armalite    B-Square     Bobro     Burris     CAA    DNZ     GG&G    JP Rifles    KAC    LaRue     Leatherwood    Mamba    Model 1 Sales    Nightforce    Promag    RRA     Talbot    USO    Wilson     Extended Rail and Rings     Rings Only     Credits



GG&G Accucam QD Scope Mount

Accucam QD 30mm Mount (GGG-1198) - http://www.gggaz.com/index.php?id=149

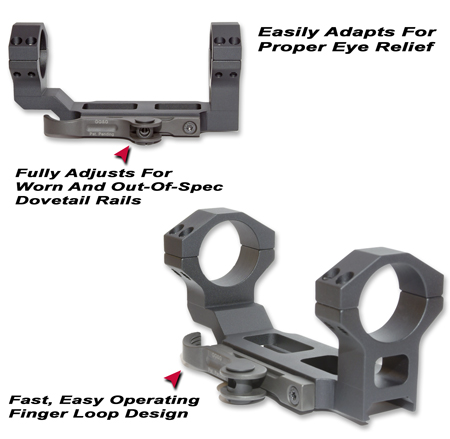

AC-30 30mm Extended Mount (GGG-1238) - http://www.gggaz.com/index.php?id=166
AC-34 34mm Mount (GGG-1264) - http://www.gggaz.com/index.php?id=225

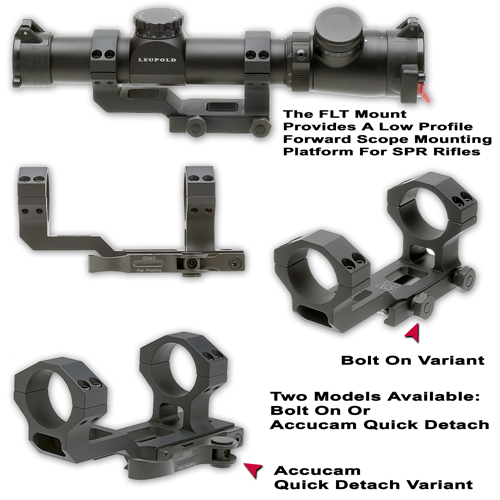

FLT Mount (GGG-1383 - QD, GGG-1384 - Bolt-on) - http://www.gggaz.com/index.php?id=238&parents=38,143

The Accucam QD is $200 new.
The AC-30 extended and AC-34 34mm versions are $210 new.
The FLT is $190 (QD) and $147 (bolt-on)

Centerline height - 1.40" (Accucam QD), 1.46" (FLT 30mm)
Weight - 6 oz (AC-34). 5.5 oz (FLT)
Body - 6061 aluminum alloy, T6 temper
Ring screws - socket head cap screws
Clamp assembly - 4140 steel
Clamp attachment - QD cam lever

The GG&G Accucam is a sturdy and repeatable QD mount.  The QD mount is also made in a lower 1.06" centerline height version for traditional rifles.

The base is aluminum and the locking mechanism is steel.  It has a 1.400 centerline for the AR version, and 1.060" for the bolt gun version.  Repeatability has been tested by the manufacturer at 0.5 MOA.  The QD lever is adjustable for worn or out of spec rails.

For the QD, the center to center distance between the rings is 4.4".  For the AC-30 and AC-34, the overall length of the mount is 5", the base is 4", and the distance between the inner ring edges is 3.75".


Accucam QD 30mm




Accucam AC-30 Extended 30mm




Accucam AC-34 Extended 34mm



GGG has introduced the FLT extended mount for SPR rifles, with an additional 1.5" forward offset.  Available in both QD and a less expensive bolt-on version, the FLT is another alternative for scopes requiring extended forward offset for eye relief.


GGG FLT extended mount

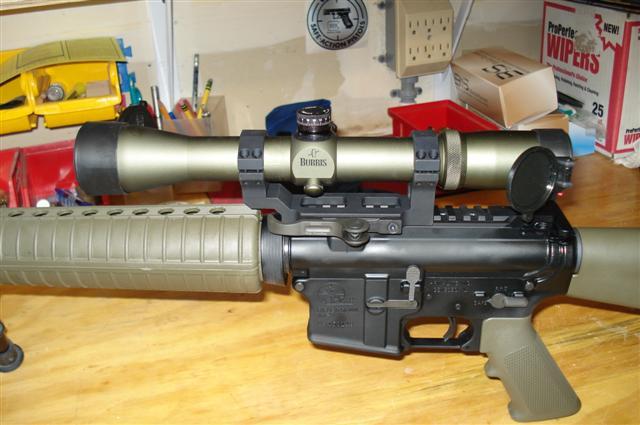

Burris FFII Tactical 3-9x40 scope in a GG&G mount


Table of Features     ADM    Armalite    B-Square     Bobro     Burris     CAA    DNZ     GG&G    JP Rifles    KAC    LaRue     Leatherwood    Mamba    Model 1 Sales    Nightforce    Promag    RRA     Talbot    USO    Wilson     Extended Rail and Rings     Rings Only     Credits



JP Rifles One-Piece

1" mount - http://www.jprifles.com/buy.php?item=JPFTSM-1
30mm mount - http://www.jprifles.com/buy.php?item=JPFTSM-30

The JP mount is $150 new.  It's one of the best made and sturdiest of the non-QR one-piece mounts.

Centerline height: 1.5"

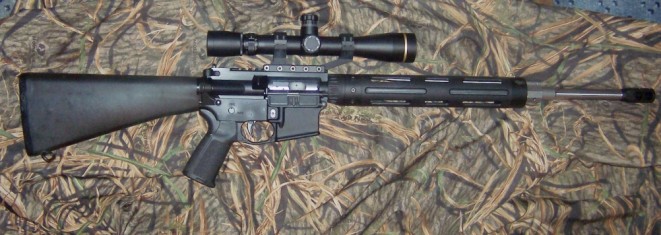

Leupold VX-III 4.5-14 scope mounted in a JP mount - note more forward offset is available in both rings


Table of Features     ADM    Armalite    B-Square     Bobro     Burris     CAA    DNZ     GG&G    JP Rifles    KAC    LaRue     Leatherwood    Mamba    Model 1 Sales    Nightforce    Promag    RRA     Talbot    USO    Wilson     Extended Rail and Rings     Rings Only     Credits



Knight's Armament (KAC)
http://www.knightarmco.com/mod_weapons_2.htm

25284 (black) 34mm, 1.4" high - $270 new
24755 (FDE) 34mm, 1.4" high - $270 new
24755 M110/SASS (FDE) 30mm - $213 new



32968 - 30mm, 1.57" high - Price unknown.



Table of Features     ADM    Armalite    B-Square     Bobro     Burris     CAA    DNZ     GG&G    JP Rifles    KAC    LaRue     Leatherwood    Mamba    Model 1 Sales    Nightforce    Promag    RRA     Talbot    USO    Wilson     Extended Rail and Rings     Rings Only     Credits



LaRue Tactical

SPR/M4 LT-104 - 1", 30mm, 34mm - http://stores.homestead.com/Laruetactical/Detail.bok?no=30
SPR-E LT-139 Extended Eye Relief - http://stores.homestead.com/Laruetactical/Detail.bok?no=40
SPR/M4 LT-135 1.93" extra high - http://stores.homestead.com/Laruetactical/Detail.bok?no=67
SPR-S LT-158 - Lowered version for 34mm rings, 10 MOA elevation - http://stores.homestead.com/Laruetactical/Detail.bok?no=42

The LT-104 and LT-158 are $195 new, $150-180 used.
The LT-135 and LT-139 are  $215 new, $160-190 used.

Centerline Heights:

LT-104, LT-139 - 1.5 (30mm), 1.41" (1")
LT-135 - 1.93 (30mm), 1.84" (1")
LT-158 - 1.50" (34mm) 1.44 (30mm), 1.35" (1") - 10 MOA elevation
(The 1" mounts are 0.09" lower than the 30mm mounts)
Clamp Attachment - 2 QR levers with oiling holes, one with a lever lock
Recoil Lug - 2 Integral Picatinny lugs

Additional LT-104 dimensions:
Ring width - 0.9"
Distance between rings - 2.60"
Length of extension - 1.88"

Considered one of the best quick-release mounts, the LaRue is pretty close to a perfect mount for the AR.  It has a good reputation for return to zero when remounted in the same position, is well made, has an assortment of heights and forward offsets in multiple versions, and the company provides good customer support.

LaRue mounts leave enough room behind the rail for mounting a BUIS, and have 2 integral recoil lugs.  The QR levers are adjustable for worn or out of spec rails, requiring a wrench for adjustment.

For traditional scopes, the LT-104 SPR mount provides good eye relief for most people.  For scopes with long eyepieces, like most illuminated scopes, the LT-139 SPR-E extended mount provides more flexibility.  The SPR-E works well with the popular and inexpensive DMS-1 scope, but costs nearly as much as the scope does.

DMS-1 mounted all the way forward in a LaRue SPR-E.  This provides good forward offset for people who shoot nose to charging handle (NTCH), and can move back for those who shoot further back.  Some people who shoot with longer stocks find the SPR-E is too far forward, and prefer the standard SPR.


Table of Features     ADM    Armalite    B-Square     Bobro     Burris     CAA    DNZ     GG&G    JP Rifles    KAC    LaRue     Leatherwood    Mamba    Model 1 Sales    Nightforce    Promag    RRA     Talbot    USO    Wilson     Extended Rail and Rings     Rings Only     Credits



Leatherwood Hi-Lux 3DSMT Mount - 1" or 30mm
http://www.midwayusa.com/eproductpage.exe/showproduct?saleitemid=617607&t=11082005
http://www.opticsplanet.net/leatherwood-3d-all-steel-tactical-mount-w-cam-and-calibration-ring.html

The Leatherwood Hi-Lux 3D is $360-$370 new.
Body - Steel
Weight - over 2.5 lbs

This curious and fascinating mount gives up to 120 MOA of vertical adjustment, as well as windage adjustments.  It's a 30mm mount with 1" full circumference ring adapters that are flanged to keep the adapters from shifting in the 30mm clamps.




Table of Features     ADM    Armalite    B-Square     Bobro     Burris     CAA    DNZ     GG&G    JP Rifles    KAC    LaRue     Leatherwood    Mamba    Model 1 Sales    Nightforce    Promag    RRA     Talbot    USO    Wilson     Extended Rail and Rings     Rings Only     Credits



Mamba Products Long Range Mounts
25 MOA, One inch rings, 0.875" centerline - http://www.midsouthshooterssupply.com/item.asp?sku=000331WAR2508
25 MOA, One inch rings, 1.00" centerline - http://www.midsouthshooterssupply.com/item.asp?sku=000331WAR2510
25 MOA, One inch rings, 1.30" centerline (discontinued) - http://www.midsouthshooterssupply.com/item.asp?sku=000331WAR2513
40 MOA, 30mm rings, 1.30" centerline - http://www.midsouthshooterssupply.com/item.asp?sku=0003330WAR4013

The Mamba 1" mounts are $150 new, and the 30mm mount is $200 new.

The Mamba Long Range one-piece mounts provide additional MOA elevation for long-range shooters.  They have no additional eye relief compared to standard rings. They use Torx-Plus screws, and include a wrench and spare screws.


Table of Features     ADM    Armalite    B-Square     Bobro     Burris     CAA    DNZ     GG&G    JP Rifles    KAC    LaRue     Leatherwood    Mamba    Model 1 Sales    Nightforce    Promag    RRA     Talbot    USO    Wilson     Extended Rail and Rings     Rings Only     Credits



Model 1 Sales - 1" or 30mm

http://www.model1sales.com/item-detail.cfm?ID=SMR001&storeid=1&image=mountring.gif&CFID=1014587&CFTOKEN=58846860

The M1S mount is $79 new, and $40-60 used.  It may still be available at Midway for $65, the old price.

Centerline height - 1.75" (1" mount)
Body - aluminum

The M1S mount is one of the higher one-pieces.  As a result, it will clear a folding rear BUIS better than shorter mounts, and 1x scopes will have less of the front sight in the field of view.  However, it may need to be mounted so that it will overhang the handguard in order to leave enough slots open for a BUIS.


3.3-10x44mm Nikon Monarch UCC in a M1S mount


Table of Features     ADM    Armalite    B-Square     Bobro     Burris     CAA    DNZ     GG&G    JP Rifles    KAC    LaRue     Leatherwood    Mamba    Model 1 Sales    Nightforce    Promag    RRA     Talbot    USO    Wilson     Extended Rail and Rings     Rings Only     Credits



Nightforce Uni-mount - 30mm

http://www.nightforceoptics.com/RINGS__BASES___MOUNTS/rings__bases___mounts.html
Standard Height - http://www.midwayusa.com/eproductpage.exe/showproduct?saleitemid=342977
Extra High - http://www.midwayusa.com/eproductpage.exe/showproduct?saleitemid=540085

The Uni-mount is $260 new.

Centerline height - 1.125" and 1.4" versions - gives 20 MOA of elevation

The Ultralight has a 7075 T6 aluminum body and titanium alloy crossbolt, nut, and jaw.  Edges are micro-radiused to help avoid scratching and snagging.  The Nightforce gives a good bit of extension, while leaving plenty of open slots for a BUIS, as seen in the picture below.

The Nightforce with a Nightforce 2.5-10x24 NSX mounted.  There's room to move the scope even further forward in the rings for those who need lots of eye relief.


Table of Features     ADM    Armalite    B-Square     Bobro     Burris     CAA    DNZ     GG&G    JP Rifles    KAC    LaRue     Leatherwood    Mamba    Model 1 Sales    Nightforce    Promag    RRA     Talbot    USO    Wilson     Extended Rail and Rings     Rings Only     Credits



ProMag One-Piece - 1" and 30mm

http://www.promagindustries.com/ProductDetails.asp?ProductCode=PM067
http://www.promagindustries.com/ProductDetails.asp?ProductCode=PM067A
http://www.midwayusa.com/eproductpage.exe/showproduct?saleitemid=371698&t=11082005


The Promag mount is $55-78 new.

Centerline Height - 1.68" (1" - measured), 1.45" (reported)
Weight - 277 grams, 9.8 oz
Body - Aluminum
Clamp Attachment - Flat thumbscrews on separate threaded stock
Recoil lug - Square stock shank of the front cross-slot screw

The Wilson, ProMag, and RRA mounts all appear similar to each other.

The Promag is an inexpensive mount that gets mixed reviews on vendor sites, usually for stripped threads or screws.  It's a tall mount, with lots of room for clearing a BUIS, and several slots open behind it that will fit most BUIS.  It provides little additional forward offset compared to rings.  Due to the ring width and spacing, it can have less offset than just rings, as seen in the picture below, where the rear ring limits the scope's forward offset.

The rings have a layer of tape in them to help protect the scope from scratches and to give a little extra pressure.  The ring halves don't fully meet when a scope is in place, which is good because it allows enough pressure to hold the scope firmly and keep it from shifting under recoil.  You can crimp a scope tube by over-tightening them, but this is common with most scope rings.  There's some color mismatch between the mount body and the top ring halves.  The rings are 1.16" wide, which gives plenty of clamping area, but can limit how much some scopes can be adjusted in the mount.  The ring screws are allen head.

The recoil lug is the square shank of the front cross-slot screw, which limits how far forward the mount can be placed, and is 0.155", which is a size range for use with both Picatinny and Weaver slots.  The rear shank is ground down flush with the base, removing about half the metal, even though it lines up with a Picatinny spaced slot.  Both screws are separate from the base - they're pinned at the non-screw end and glued into place.  The rail clamp is spring-loaded to ease in removal and install.  Rail attachment is by flat headed steel thumbscrews.  Once the screws are tight, there's no option to re-adjust the screw angle as with some QR lever rings.

The mount packaging was marked "May be assembled from domestic and imported components".


Nikon Primos Monarch in a PM067 mount - note the scope barely fits due to ring spacing



 Many thanks to anonymous for the great pics and data!


Table of Features     ADM    Armalite    B-Square     Bobro     Burris     CAA    DNZ     GG&G    JP Rifles    KAC    LaRue     Leatherwood    Mamba    Model 1 Sales    Nightforce    Promag    RRA     Talbot    USO    Wilson     Extended Rail and Rings     Rings Only     Credits



RRA mount - 1"

http://www.rockriverarms.com/index.cfm?fuseaction=category.display&category_id=326

The RRA is $48 new.

Centerline Height - 1.685" (1"), no height info on 30mm
Weight - 10.7 oz
Body - Aluminum, machined from extrusions
Clamp attachment - thumbscrews with coin slots

More dimensions for a 1" mount:
Height from receiver to bottom of cradle 1.187
Height from receiver to center of rings 1.687
Overall height 2.187
Overall length 5.250
Distance between cradles 2 5/8"

RRA has recently updated the design, with more forward offset and a sleeker, less blocky look.  It covers most of the rail and doesn't leave room for a BUIS unless mounted overhanging the handguard slightly, as in the mounted pics below.  The mounts are now made in-house by RRA, rather than by an outside vendor.

Here's how one user had to mount it to get enough eye relief, with the eyepiece of this scope a little forward of the charging handle.  The Armalite mount can be mounted slightly forward of the rail in a similar manner.



Old style RRA Mount Details:

Centerline Height - 1.7"
Body - Aluminum
Clamp attachment - thumbscrews with coin slots

The Wilson, ProMag, and old RRA mounts all appear similar to each other.

The old style RRA is a tall mount, with lots of room for clearing a BUIS, and several slots open behind it that will fit most BUIS.  It provides little additional forward offset compared to rings.

Redfield scope in an old style RRA mount


Table of Features     ADM    Armalite    B-Square     Bobro     Burris     CAA    DNZ     GG&G    JP Rifles    KAC    LaRue     Leatherwood    Mamba    Model 1 Sales    Nightforce    Promag    RRA     Talbot    USO    Wilson     Extended Rail and Rings     Rings Only     Credits



Talbot (actually a 2 piece - one-piece ring pair and mount base adapter for different rifles)

http://www.talbot.us/scope_mounts.php?osCsid=3ded5efc5ef2dd81d5790e99f442bece

The Picatinny base is $312 new, and the optics adapters are between $125 and $188 new, for a total cost of $437 to $500(!).

The Picatinny base is available in 0, 10, and 20 MOA elevation versions, in both high and low mounts.  The optics adapters are available in 1", 30mm, 34mm, 35mm, and 40mm, and are also available in a reverse version for mounting the optic further back.

The Talbot rings are not split in half, similar to Leupold QRW and others.  This means the upper ring half must be snapped onto the scope, which can cause scuffing or scratching, depending on the scope's finish.  This design keeps the scope from rotating when the rings are tightened down.



Table of Features     ADM    Armalite    B-Square     Bobro     Burris     CAA    DNZ     GG&G    JP Rifles    KAC    LaRue     Leatherwood    Mamba    Model 1 Sales    Nightforce    Promag    RRA     Talbot    USO    Wilson     Extended Rail and Rings     Rings Only     Credits



US Optics (USO) Posa-Slide and Lock - 30mm
http://www.usoptics.com/acc.php?typeID=Mounts

$170-250 new, $150-180 bundled with a USO scope.

Centerline Height - 1.2"
Body - aluminum - available in custom colors

Most frequently seen bundled with their SN-4 scope, but also available separately.  The rings only have screws on one side.  The Posa-Slide system has a spring loaded recoil lug and thumb/coin screw for quick detach.

Posa-Slide and Lock Mk I - 2 rear screws, 1 front screw - $250 new
http://www.usoptics.com/accD.php?recordID=PSL-100



Posa Lock MkII - 3 rear screws, 2 front screws - $250 new
http://www.usoptics.com/accD.php?recordID=PSL-200

Posa Slide and Lock MkII Quick Detach - 3 rear screws, 2 front screws - $170 new
http://www.usoptics.com/accD.php?recordID=PSL-220

Posa Slide and Lock MkII T. S. version - extended length - 2 front screws, 2 rear screws  - $250 new
http://www.usoptics.com/accD.php?recordID=PSL-240

The non-screw side of the ring mount system




Table of Features     ADM    Armalite    B-Square     Bobro     Burris     CAA    DNZ     GG&G    JP Rifles    KAC    LaRue     Leatherwood    Mamba    Model 1 Sales    Nightforce    Promag    RRA     Talbot    USO    Wilson     Extended Rail and Rings     Rings Only     Credits



Wilson Combat

30mm mount - http://www.wilsoncombat.com/r_lo_mount_scope_mount.asp
1" mount - http://www.wilsoncombat.com/r_lo_mount_scope_mount1.asp

The Wilson Combat is $80 new.

Centerline Height - 1.65" (it's not clear if this is for both mounts or just one)
Machined from bar stock

The Wilson, ProMag, and RRA mounts all appear similar to each other.

The Wilson is a tall mount, with lots of room for clearing a BUIS, and several slots open behind it that will fit most BUIS.  It provides little additional forward offset compared to rings.


Table of Features     ADM    Armalite    B-Square     Bobro     Burris     CAA    DNZ     GG&G    JP Rifles    KAC    LaRue     Leatherwood    Mamba    Model 1 Sales    Nightforce    Promag    RRA     Talbot    USO    Wilson     Extended Rail and Rings     Rings Only     Credits



Extended Rail and Rings

After all those choices, what do you do if nothing works out the way you need it to?  There's another option with maximum flexibility, both for price and configuration - an extended, or scout, rail with rings.


Super Sniper 16x in Burris XTR low rings on an RRA extended mount

An extended rail and rings can fill the same need as a one-piece mount.  On the plus side, it's very flexible in both height and eye relief, there's a wide price range for the parts, and you can upgrade one part while keeping the other.  On the minus side, there are more connections to loosen or shift, but with the right tradeoffs, they can be as stable as a traditional one-piece mount.

The goal for height is the same as with a one-piece mount - you want the centerline somewhere around the 1.4" iron sight centerline height, but some people like a little more or less, and sometimes extra height is needed to clear a tall BUIS.  For the total height, you'd add the rail height to the ring centerline height.  Most extended rails are about 0.5", but there are lots of variations, just like with all AR optics.

One of the benefits of this approach is that you have a much wider selection of rings available, as many traditional rings are available in the 1" centerline range, while the 1.4-1.5" rings needed for mounting directly to the flat top are often only available in more expensive brands.

With this setup, you can change your scope height with new rings, or change the forward offset with a different rail, without having to change everything at once.  You can even go with a QR mount using something like the LaRue LT-101 rail, though this will have you approaching the cost of the LaRue SPR mount by the time you add good rings.


Millett DMS-1 mounted on a GG&G scout rail and rings - additional forward offset is available by moving the rear ring forward, but the front ring will limit the forward offset when the turret cluster reaches it.



Extended rails are available from YHM, ARMS, RRA, GG&G, Millett, LaRue, and others.  When choosing an extended rail, here are some of the things to look for, depending on your needs:


Table of Features     ADM    Armalite    B-Square     Bobro     Burris     CAA    DNZ     GG&G    JP Rifles    KAC    LaRue     Leatherwood    Mamba    Model 1 Sales    Nightforce    Promag    RRA     Talbot    USO    Wilson     Extended Rail and Rings     Rings Only     Credits



Rings Directly On The Rail

Another option that some people use is to mount rings directly on the flat top rail, as you would with a traditional rifle.  There are a few potential problems with this, but it works out well for some uses.

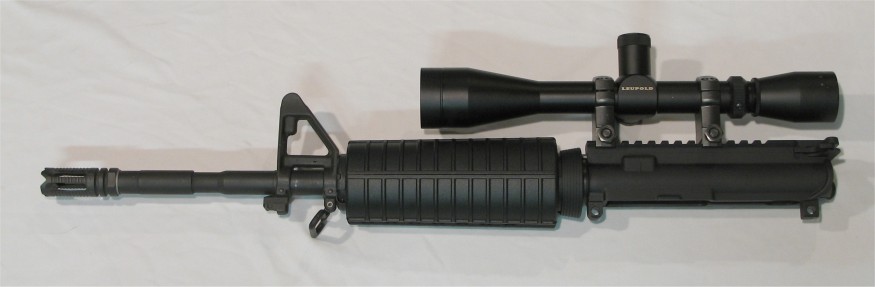

Leupold PR 3-9x40 scope in Leupold Mk4 high rings - these could be a little taller

The biggest drawback is that rings don't provide much forward offset, so scopes with long eyepieces or lots of eye relief can be too far back for some people, especially if they shoot nose to charging handle (NTCH).  With a long stock or a cheekweld far back on the stock, this can work out fine.  In the picture above, the scope is as far forward as it can go, and is limited by the front ring position.  This would work for some setups, but not for NTCH.  Likewise, many illuminated scopes have very long eyepieces, and would be even further back.

The other problem is that you need very high rings to get the scope centerline around the 1.4" iron sight centerline.  Most traditional scope rings aren't nearly tall enough - they need to be designed to work with the AR platform, and are often called ultra high or something similar.  Many of the AR specific rings are expensive, and most affordable rings don't go high enough, though there are some exceptions.

Rings high enough for use on an AR include Leupold Mark 4, Burris XTR, Badger, Millett Tactical, IOR, Warne Maxima and Tactical, and ARMS.


A note on ring heights and sizes

Like so much else in the optics world, there aren't many standards regarding ring heights and sizes, and many companies don't give enough information to make the right decision before you have the rings in hand.

Heights are different between different brands and models - Burris' XTR high is different from Warne's high, and Leupold's QRW high are different from Leupold's Mark 4 high.

In addition, some vendors spec the height to the centerline (like Leupold), while others spec their ring height to the bottom of the ring (like Burris).  To get the centerline height for these rings, you have to add 1/2 of the scope tube diameter to the spec height - 0.5" for 1" rings, or 0.59" for 30mm rings.

As an example, the popular Burris XTR extra high rings are spec'ed at 1" high for both 1" and 30mm.  Burris specs to the bottom of the ring, so the 1" version would have a centerline of 1.5", while the 30mm version would have a centerline of 1.59".  Leupold's Mark 4 super high rings are spec'ed at 1.40" high for 1" and 30mm.  Since Leupold specs to the centerline, both rings have a 1.4" centerline.

The important thing is to find out what the specs are for the rings you're interested in, and whether they spec the ring bottom or centerline.  This can save a lot of frustration and wasted money.


 Credits

Thanks to I am J, JTrusty and Gear Sector, Andrew Bobro, ChupecabraChaser, tt350z, Supersonic, RandyStacyE, kazkut, kwrangln, Blacktail-8541, army_eod, nvhunter, Bravo Company, Glock24, fatbarrel, and many others for some of the great pics and info on this page.  If I haven't given you credit for a photo or data, let me know and I'll fix it!

This is a group effort, and I appreciate everyone's help in keeping this page accurate and up to date.


Table of Features     ADM    Armalite    B-Square     Bobro     Burris     CAA    DNZ     GG&G    JP Rifles    KAC    LaRue     Leatherwood    Mamba    Model 1 Sales    Nightforce    Promag    RRA     Talbot    USO    Wilson     Extended Rail and Rings     Rings Only     Credits
